How Release Agents Affect Carbon Fiber Performance and Appearance

# Part 1: Overview of Carbon Fiber Manufacturing Processes and Their Challenges

Carbon fiber components can be manufactured using a variety of processes, and each process presents very different challenges for release agents. Understanding these process characteristics is the first step in selecting the right release agent.

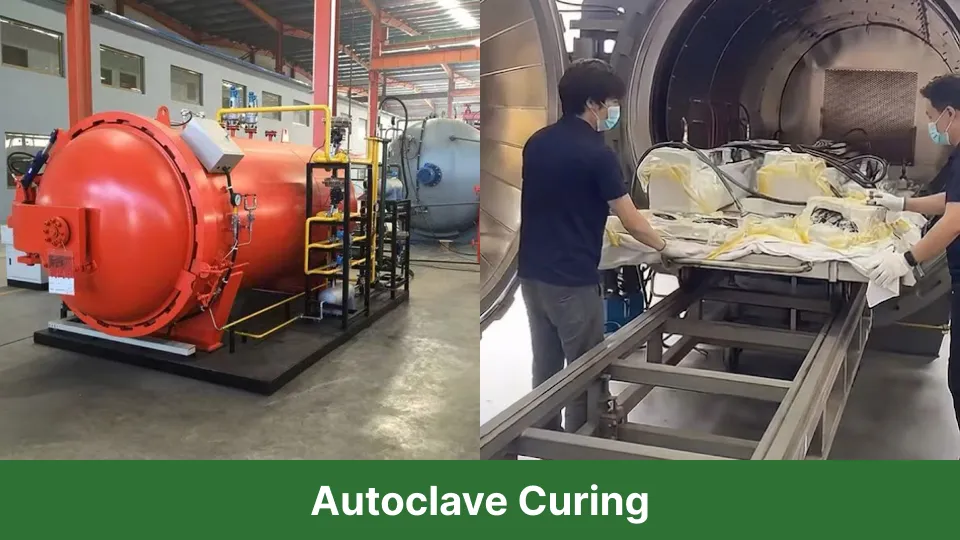

# 1. Autoclave Curing

This is the preferred method for producing high-performance, high-precision composite parts such as aerospace components and premium bicycle frames. The process involves long curing cycles under high temperature and high pressure—typically up to 177°C and above 7 bar.

Key Challenge:
The release agent must deliver outstanding thermal stability and pressure resistance. Conventional release agents tend to decompose, evaporate, or be penetrated by the resin under extreme autoclave conditions, leading to release failure, mold sticking, or part defects.

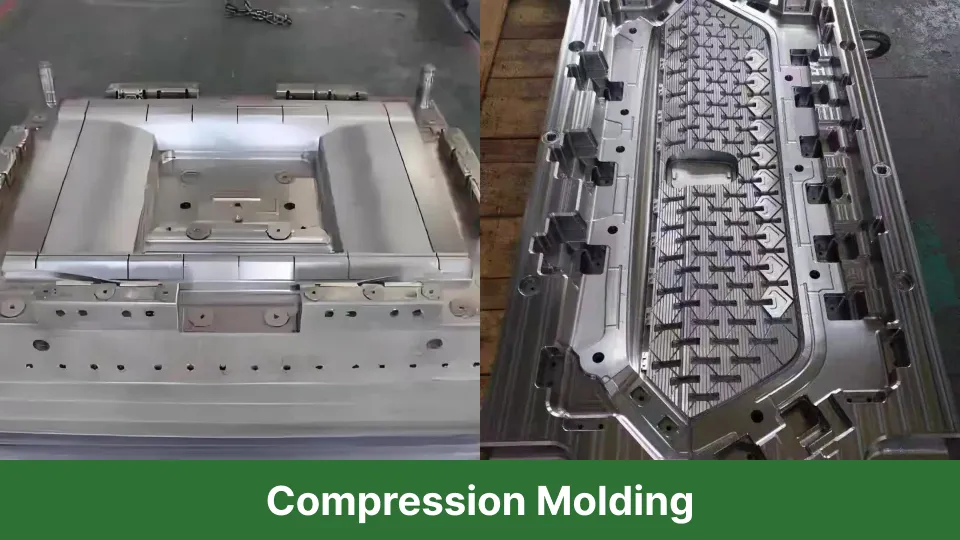

# 2. Compression Molding

Widely used for high-volume automotive components such as bumpers and exterior body panels. This process aims for high efficiency and fast production cycles.

Key Challenge:
The release agent must dry quickly and support multiple releases without frequent reapplication. Any residue or additional coating time directly slows down the production cycle and reduces overall cost efficiency.

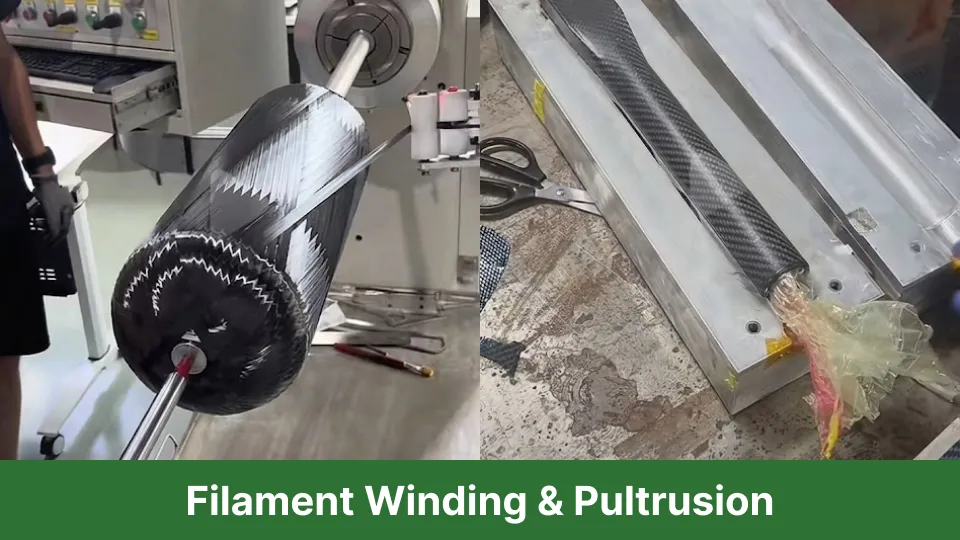

# 3. Filament Winding & Pultrusion

Commonly used to manufacture long, axis-shaped components such as fishing rods, golf shaft mandrels, and wind turbine blade spars.

Key Challenge:
The release agent must form a uniform, stable film on complex mandrels or continuously moving molds. It must provide consistent low friction to prevent damage, fiber disturbance, or surface defects during winding or pultrusion processes.

---

# Part 2: How Release Agents Influence Carbon Fiber Manufacturing Processes

Given the demanding requirements of carbon fiber molding, general-purpose release agents often fail to perform reliably. Our company focuses on delivering high-performance, highly compatible release agents specifically designed for CFRP production. We understand the importance of balancing performance with environmental responsibility.

We offer two main product series—water-based and eco-friendly solvent-based—to provide customized solutions for different CFRP molding processes, ensuring efficiency, precision, and environmental compliance.

# 1. Water-Based Series: Eco-Friendly Precision for Complex Molding Processes

Our water-based release agent series is developed in response to the global shift toward low-VOC (volatile organic compound) manufacturing. At the same time, it is optimized for large, complex composite structures. This series offers significant advantages across multiple carbon fiber molding methods.

# 1.1 Environmental and Operational Safety (Reduced Operating Costs)

Low odor, high safety:
With a water-based formulation, VOC emissions are dramatically reduced, making the products fully compliant with increasingly strict environmental regulations.

Since no heavy ventilation or explosion-proof equipment is required, factories can significantly reduce their investment in safety systems, as well as ongoing maintenance and energy consumption. This directly lowers operating costs.

# 1.2 Improved Part Precision and Surface Quality (Ideal for Large and Complex Molds)

Superior wetting and flow characteristics:
Water-based systems feature lower surface tension, allowing excellent leveling and uniform coverage—even on very large or highly complex molds such as wind turbine blades, carbon fiber bicycle frames, or snowboards.

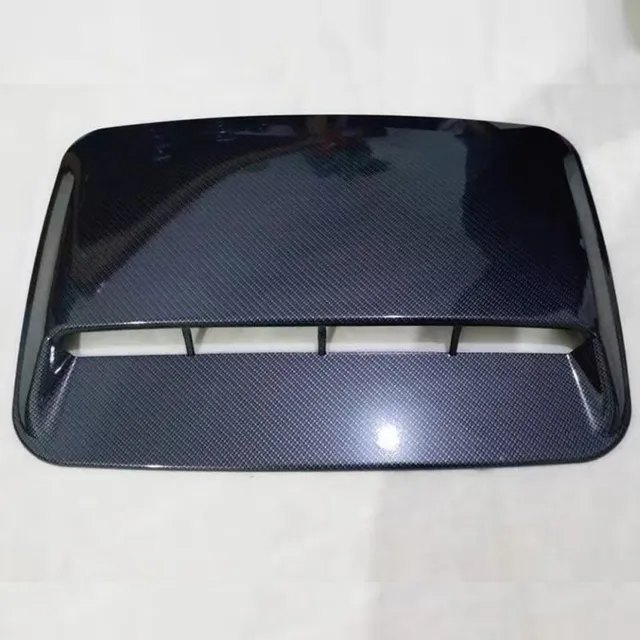

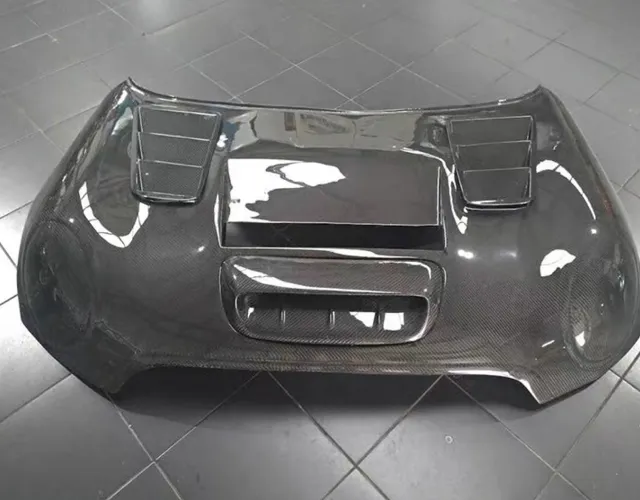

This ensures the release film forms an ultra-thin, consistent layer across all edges, corners, and intricate details, preventing local sticking or fiber pull-out during demolding. The result is a defect-free, high-gloss surface finish.

# 1.3 Ideal Process Compatibility

• Filament Winding:
  Ensures a uniform and stable release film on mandrels, preventing film damage caused by winding tension.

• Compression Molding under strict environmental standards:
  Enables high-efficiency demolding in factories that prioritize worker safety and require compliance with stringent environmental regulations.

---

# 2. Eco-Friendly Solvent-Based Series: The Perfect Combination of High Performance and High-Speed Production

Our solvent-based release agents use eco-friendly carrier solvents rather than traditional high-pollution options. This product series is engineered to deliver exceptional production efficiency and reliable demolding performance under the most demanding conditions. It offers distinct advantages across multiple CFRP manufacturing processes.

# 2.1 Maximizing Production Speed (Ideal for Automotive and High-Volume Manufacturing)

Ultra-fast drying and instant film formation:
The solvent carrier evaporates quickly and forms a release film within seconds. This is critical for compression molding, where short cycle times directly determine output efficiency.

By shortening mold cycle time, manufacturers can significantly increase productivity and reduce cost per part.

# 2.2 Enhanced Release Reliability (Optimized for Autoclave Curing)

High penetration and dense film formation:
The solvent promotes rapid, uniform distribution of active ingredients across the mold surface, creating a denser and stronger semi-permanent release film.

In autoclave processes that operate at temperatures above 180°C and pressures above 10 bar, this robust film provides stable and reliable release performance, greatly reducing the risk of sticking, surface defects, or mold damage.

# 2.3 Ideal Process Compatibility

• Autoclave Curing:
  High-performance film withstands extreme temperature and pressure, ensuring excellent accuracy for aerospace-grade parts and premium sports equipment.

• High-efficiency Compression Molding:
  Ultra-fast drying and re-coating capabilities enable rapid cycle turnover on automated production lines.

---

# Part 3: How Release Agents Affect Secondary Processing

The quality of the release agent influences more than just the moment of demolding—it also determines the long-term performance and final success of the carbon fiber component. A poor-quality or incompatible release agent can become a hidden threat that compromises part integrity and downstream processing.

# 3.1 Potential Impact on Final Mechanical Performance

In autoclave curing, insufficient thermal stability may cause the release agent to partially decompose under extreme temperature and pressure. Trace amounts of decomposition by-products can migrate into the resin matrix at the surface layer. Although invisible to the naked eye, this contamination can:

• Reduce interlaminar shear strength (ILSS):
  A weak boundary layer near the surface lowers the material’s ability to withstand shear loads.

• Shorten fatigue life:
  Surface defects or contaminants become stress concentration points, accelerating crack initiation and propagation.

# 3.2 The Critical Challenge in Secondary Processing: Release Agent Transfer

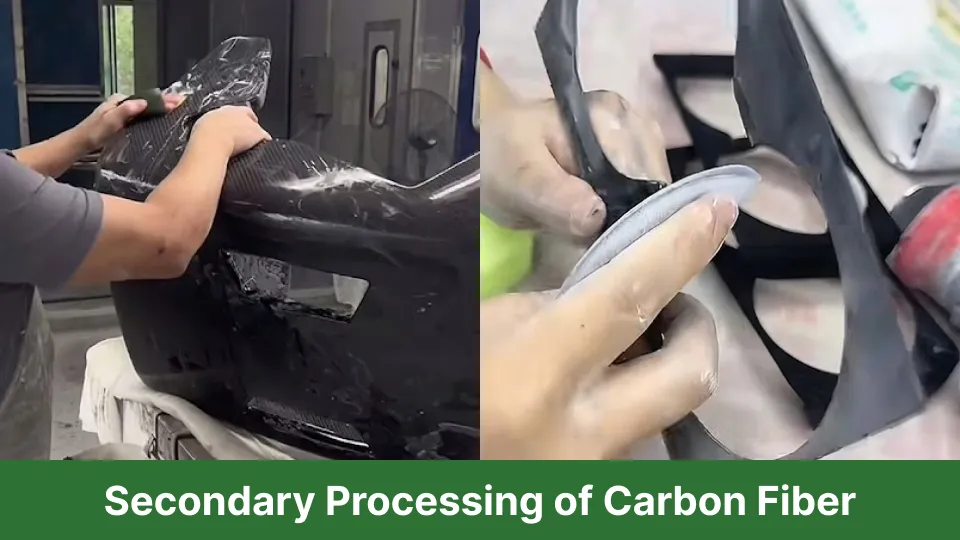

Most carbon fiber products undergo secondary operations such as bonding (e.g., joining the two halves of a wind turbine blade), painting (e.g., automotive body panels), or surface finishing.

Here, release agent transfer becomes the key issue.
If the release agent—especially silicone-based or fluorowax-based systems—migrates excessively to the part surface, it forms an inert, non-wettable layer that leads to:

• Bonding failure:
  Adhesives cannot properly wet or adhere to contaminated surfaces, resulting in weak or unacceptable bond strength. For structural components such as bicycle frames or wind turbine blades, this is a critical failure mode.

• Coating defects:
  Paint and clear coat cannot form a continuous film, causing cratering, fisheyes, or other surface imperfections that directly reduce product appearance and commercial value.

A professional carbon fiber release agent is engineered to achieve minimal transfer, ensuring clean surfaces while maintaining excellent release performance. This allows subsequent bonding, coating, and finishing processes to proceed smoothly and reliably.

---

# Part 4: Professional Selection—Key Performance Indicators for Release Agents

For carbon fiber manufacturers, selecting the right release agent requires a thorough evaluation of several critical technical parameters. These indicators directly influence production efficiency, product quality, and long-term reliability.

# 4.1 Thermal Stability and Chemical Resistance

A suitable release agent must withstand temperatures higher than the resin’s curing temperature while maintaining its chemical structure under extreme conditions. It should also resist chemical attack from amines, acidic by-products, and other reactive compounds released during the curing process.

# 4.2 Mold Build-Up Rate

Build-up refers to the accumulation of release agent residues, resin degradation products, and fillers on the mold surface. A high-quality release agent should have an extremely low build-up rate, reducing mold cleaning frequency, minimizing production downtime, and lowering maintenance costs.

# 4.3 Release Efficiency

A release agent must not only release but release easily.
Low and consistent release force is essential to prevent part deformation, surface defects, or fiber distortion. A stable release film should maintain performance over multiple molding cycles without noticeable degradation.

# 4.4 Paintability and Bondability

Although often overlooked, this is one of the most crucial performance indicators. Manufacturers should conduct small-scale validation to ensure that parts molded with the release agent can undergo bonding and painting without excessive cleaning. Good paintability and bondability directly affect secondary processing success and structural integrity.

---

# Conclusion and Outlook: Strategic Release Agent Management

In carbon fiber manufacturing, release agents are far from being mere auxiliary materials—they are strategic quality control tools that directly influence production efficiency, product appearance, and final structural performance.

From the flawless surface finish demanded in high-end golf clubs to the structural integrity required for wind turbine blades, every high-quality carbon fiber component relies on the silent support of a professional release agent.

As a specialized release agent supplier, we are committed to providing solutions that meet—or even exceed—the most stringent requirements of carbon fiber molding. Our goal is to help manufacturers achieve zero-defect demolding, high-efficiency production, and superior secondary processing performance.

Choosing the right release agent is the key to unlocking the full potential of carbon fiber products.
